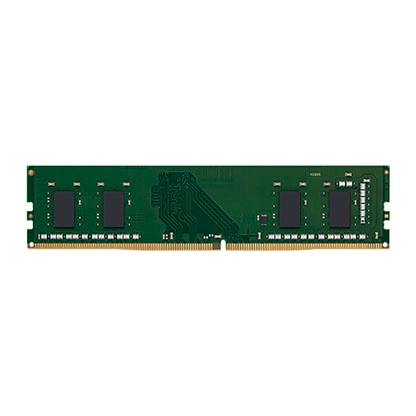

Kingston Value Ram DDR4 3200MHz / 2666MHz Non-ECC Unbuffered DIMM

Kingston Value Ram DDR4 3200MHz / 2666MHz Non-ECC Unbuffered DIMM is available through Zapcart Technology for customers, offices, IT teams and procurement buyers in Qatar. Zapcart can support single-item purchase, bulk quantity pricing, approved alternatives, delivery coordination and warranty notes. For GCC or Saudi enquiries, use the RFQ desk so our team can confirm availability, commercial terms and delivery options.

Product overview

This document describes ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: • Power Supply: VDD = 1.2V Typical • VDDQ = 1.2V Typical • VPP = 2.5V Typical • VDDSPD = 2.2V to 3.6V • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals • Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus • On-die VREFDQ generation and calibration • Single-rank • On-board I2 serial presence-detect (SPD) EEPROM • 16 internal banks; 4 groups of 4 banks each • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) • Selectable BC4 or BL8 on-

Key specifications

• Power Supply: VDD=1.2V Typical
• {"• Power Supply": "VDD=1.2V Typical", "• PCB": "Height 1.23” (31.25mm)"}
